Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System

Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System

Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System
Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System

تصویر بزرگ :  Latest Wireless Digital ECG Machine Electrocardiograph Machine Based IOS System بهترین قیمت

جزئیات محصول:
Place of Origin: China(Mainland)
نام تجاری: V&H
گواهی: CE & ISO
Model Number: iCV200-BLE
پرداخت:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per week
توضیحات محصول جزئیات
Product: Latest digital wireless resting ECG machine based iOS system Type: Resting
Transfer Way: Bluetooth Model No.: iCV200
Color: White Function: Automactically monitor and analysis ECG
برجسته:

Poctet ECG,electrocardiograph machine

,

electrocardiograph machine



Latest digital wireless resting ECG machine based iOS system



iCV200-BLE ecg 12 channel device

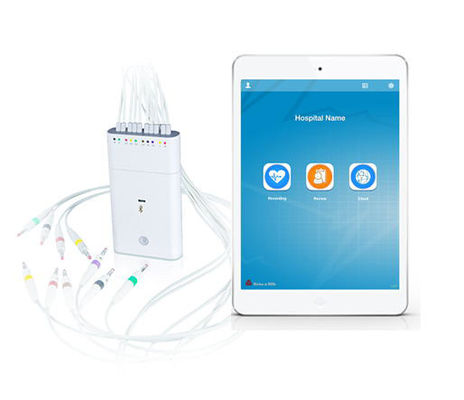

CARDIO VIEW iCV200-BLE is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,iCV200-BLE guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.





Advantages:

  1. The first professional elsctrocardiogram (ECG) product developed on android portable device.
  2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. Bluetooth communication

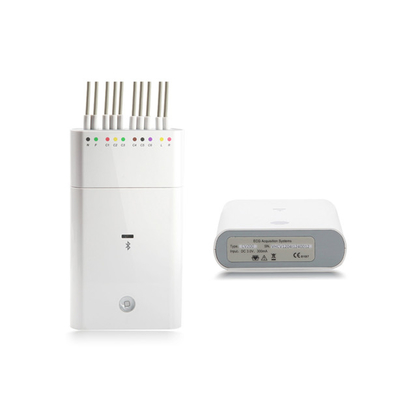

ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection >110dB
Resolution 0.4uV
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV
Power 2xAA Batteries
Communication WIFI(ipad,iphone)Blue Tooth(Android)
Defibrillation Project  Build-in
