Resting Handheld Mini Smart ECG Machine / ECG Monitoring Device For IOS System
|
جزئیات محصول:
پرداخت:
|
توضیحات محصول جزئیات
| Product: | 2017 new arrive handheld mini smart ECG machine for iOS system | Type: | Resting |
|---|---|---|---|
| Transfer Way: | Bluetooth | Defibrillation Protect: | Build-in |
| Channel: | Standard 12 channel | Time Constant: | >3.2Sec |
| Power: | 2 AA Batteries | Resolution: | 0.4uV |
| برجسته: | ,,hand held ecg |
||
2017 new arrive handheld mini smart ECG machine for iOS system
Advantages:
- The first professional elsctrocardiogram (ECG) product developed on IOS portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
- Automatic measurements and interpretations.
- Simultaneous 12-lead ECG
- Bluetooth communication
Advantages of bluetooth communication
- Save Power
- Start within 1s
- Stable Signal
- Long distance transmission - 10m

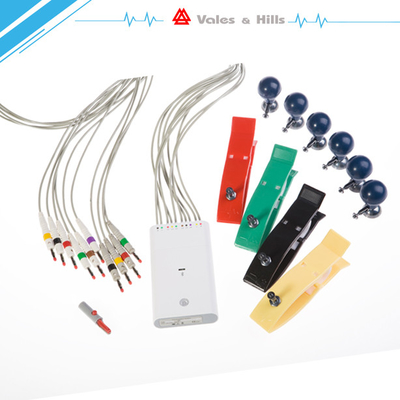

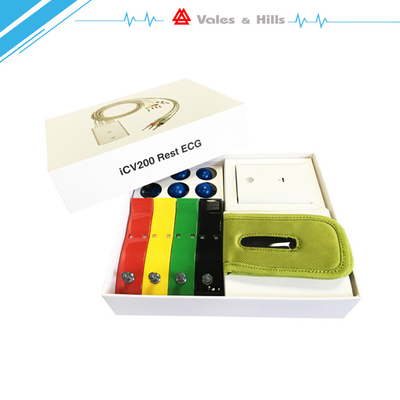

Standard Accessories
- Acquisition box * 1
- 10-lead patient cable * 1
- Suction electrodes * 6
- Extremity electrodes * 4
- Carry pouch * 1
- User manual(CD) * 1
ECG Recorder Specifications
| Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
| Quantization Precision |
A/D:24 Bits Recording:16 Bits |
| Common Mode Rejection | >110dB |
| Resolution | 0.4uV |
| Input Impedance | >20M |
| Frequency Response | 0.05-250Hz(±3bB) |
| Time Constant | >3.2Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±15mV |
| Power | 2xAA Batteries |
| Communication | Bluetooth |
| Defibrillation Project | Build-in |
About Us
Vales and Hills Biomedical Tech.Ltd is a global provider centralizing of electrocardiograph(ECG) products and ECG web services for clinical applications. For over 10 years,we have been creating a complete CardioView product line which covers Portable ECG(IOS and Android ), PC-ECG,ECG Workstation,Holter,ABPM, ECG Network and ECG Cloud Service.
Which a pioneering spirit in technology innovation, V&H has set up a truly top-notch team with determination, conceived in collaboration, dedicated to the proposition that clients and people are the first to be focused on. We continue to invest in advanced technology to meet the ever-changing clinical needs of the market.
