Patient Standard 12 Channel Stress ECG Machine Stress Test System
|
جزئیات محصول:
پرداخت:
|
توضیحات محصول جزئیات
| Product: | New design patient standard 12 channel stress test ECG machine | Type: | Stress |
|---|---|---|---|
| Color: | Grey | Channel: | 12 |
| Cable: | Simultaneous 12-lead | Function: | Automactically Monitor and Analysis ECG |
| برجسته: | ,,stress test system |
||
New design patient standard 12 channel stress test ECG machine
CV-1200 Stress Test System
CV-1200+ Stress Test System Stess Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived, and Analyze ECG Recording and other Measurements
Standard Features
- 12-channel resting ECG
- Automatic ECG measurements and interpretation
- 12-channel full disclosure exercise ECG, with ST measurement and rhythm measurement
- Data management system
- Common laser printer interface for documentation on standard(A4) paper
- Large color screen with high resolution for paperless operation
- Microsoft Windows XP/7 operating system
- Real time display, analyze HR,ST segment, and reanalyze ST segment
- Built-in thermal printer records, 12 channels simultaneously in real time
- ST, Delta ST,ST/HR,ST slope, J point and R point trends
- CV-1200 controls selection of peripheral equipment ( ergometers, treadmills and NIBP) through integrated interface protocols(Bruce, Bruce modified, Balke ware, Ellestad, ect.)

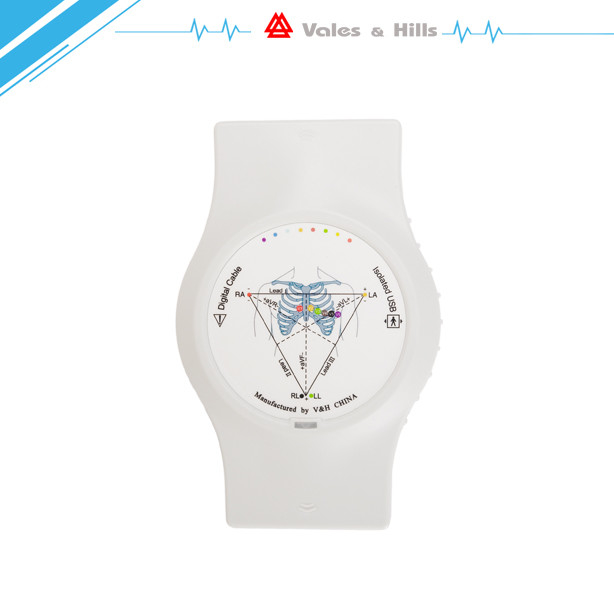

ECG Acquisition Box Specifications:
| Sampling Rate: | A/D: | 24K SPS / Ch |
| Recording: | 1K SPS/Ch | |
| Patented Multi-Channel Synchronous A/D | ||
| Quantization Precision: | A/D: | 24 Bits |
| Recording: | 16 Bits | |
| Resolution: | 0.4µ V | |
| Common Mode Rejection: | >100dB | |
| Input Impedence: | >20MΩ | |
| Frequency Response: | 0.05-250Hz(±3dB) | |
| Time Constant: | ≥3.2Sec. | |
About us
Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years. V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control. V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor.
