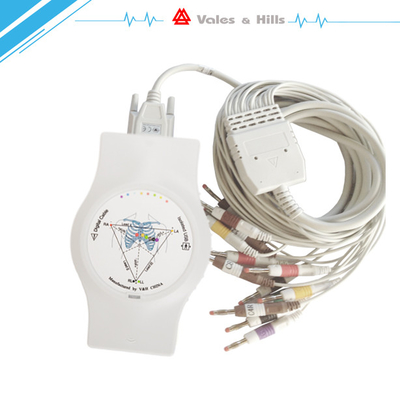

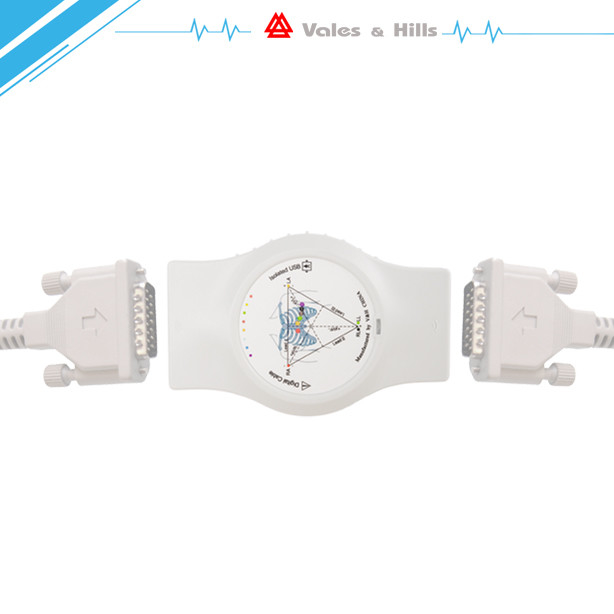

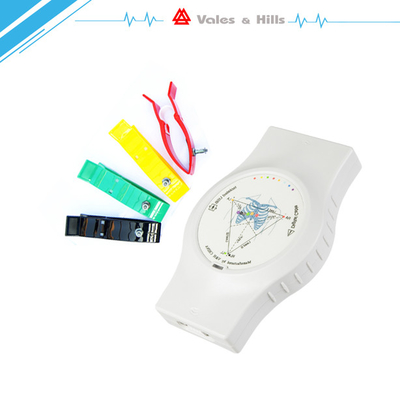

Smart Portable Digital Resting ECG Machine Accessories For Medical Use

Smart Portable Digital Resting ECG Machine Accessories For Medical Use

Smart Portable Digital Resting ECG Machine Accessories For Medical Use
Smart Portable Digital Resting ECG Machine Accessories For Medical Use Smart Portable Digital Resting ECG Machine Accessories For Medical Use Smart Portable Digital Resting ECG Machine Accessories For Medical Use

تصویر بزرگ :  Smart Portable Digital Resting ECG Machine Accessories For Medical Use بهترین قیمت

جزئیات محصول:
Place of Origin: Beijing,China(Mainland)
نام تجاری: V & H
گواهی: CE&ISO
Model Number: CV-200+
پرداخت:
Minimum Order Quantity: 1 Unit
Packaging Details: Standard Package:25cm*20cm*13cm
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, PayPal
Supply Ability: 50 Units Per Week
توضیحات محصول جزئیات
Product:: smart portable digital resting ECG accessories for medical on sale Type:: Resting
Function:: Automatically monitor and analysis ECG Cable:: 12-Lead Patient Cable
Color:: Grey properties:: Diagnostic Instruments
برجسته:

digital ecg machine,ecg monitoring device

,

ecg monitoring device

smart portable digital resting ECG accessories for medical on sale



CV-200+ Rest ECG,VCG and VLP



CARDIO VIEW CV-200+ is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data.



In the Windows XP environment, different reports can be viewed on screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200+ guarantees high quality ECG data acquisition, user friendly environment and 100% safety for the patient.



Specification



VH- CV200+ ECG work station specification
Sampling 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution 2µV
Frequency Response 0.05-250Hz(+3dB)
Common Mode Rejection >90dB
Input Impedance >10 M
Time Constant 3.2 Sec
Maximum Electrode Potential +300mV DC
Dynamic Range +10mV
Isolate Voltage 4000V
Current Leek <10µA
Patient Cable Standard 10-wire,15-Pin D Connector
PC Interface USB Connector
Dimensions 14912226 mm(5.94.81.0 in.)



Minimum Computer System Requirements:



  1. Pentium III Processor
  2. 128MB RAM
  3. 20G HD
  4. Windows XP Operating System
  5. VGA Compatible Display
  6. Windows XP Compatible Laser or Inkjet Printer

Smart Portable Digital Resting ECG Machine Accessories For Medical Use
