Smart 12 Channel ECG Machine for PC based ECG Device with Fan Type Box
|
جزئیات محصول:
پرداخت:
|
توضیحات محصول جزئیات
| Type: | Electronic Equipments | Color: | Grey and White |
|---|---|---|---|
| Sampling: | 500 S/S/Ch,12 bits, | Input Impedance: | >10 M |
| Dynamic Range:: | +10mV | Frequency Response:: | 0.05-250Hz(+3dB) |
| Time Constant: | 3.2 Sec | Maximum Electrode Potential: | +300mV DC |
| برجسته: | wireless ecg machine,electrocardiogram machine,electrocardiogram machine |
||
Smart 12 Channel ECG Machine for PC based ECG Device with Fan Type Box
CV200 ecg 12 channal

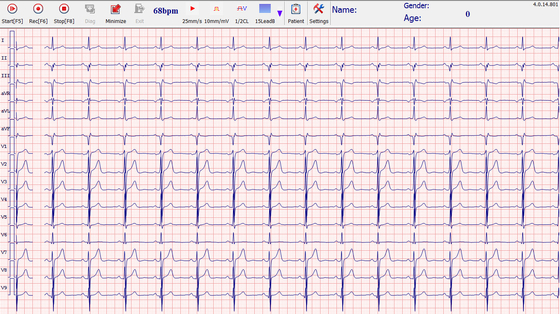

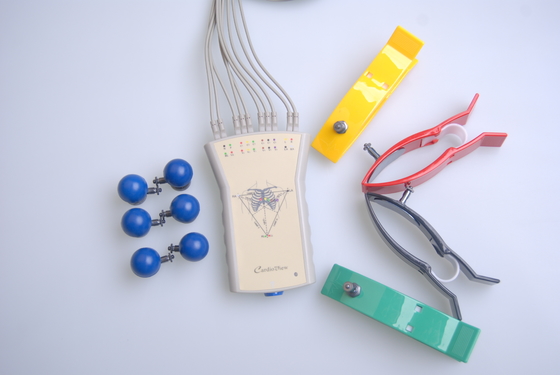

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
Minimum Computer System Requirements:
- Pentium III Processor
- 128MB RAM
- 20G HD
- Windows XP Operating System
- VGA Compatible Display
- Windows XP Compatible Laser or Inkjet Printer
ECG Recorder Specifications:
| VH- CV200+-ECG work station specification | |
| Sampling | 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
| Digital Resolution | 2µV |
| Frequency Response | 0.05-250Hz(+3dB) |
| Common Mode Rejection | >90dB |
| Input Impedance | >10 M |
| Time Constant | 3.2 Sec |
| Maximum Electrode Potential | +300mV DC |
| Dynamic Range | +10mV |
| Isolate Voltage | 4000V |
| Current Leek | <10µA |

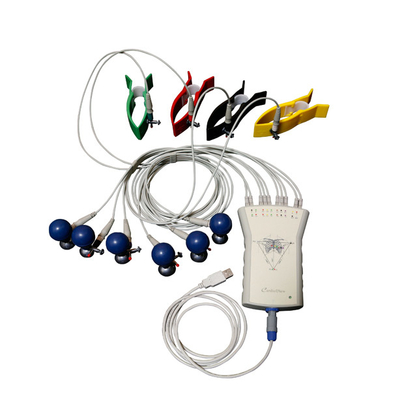

| Patient Cable | Standard 10-wire,15-Pin D Connector |
| PC Interface | USB Connector |
| Dimensions |
14912226 mm(5.94.81.0 in.) |
